Solar Energy Potential in Ciudad Guayana, Bolívar, Venezuela

Ciudad Guayana, Bolívar, Venezuela, located at 8.352, -62.6491, offers promising conditions for solar PV energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns across seasons, making it a potentially valuable site for solar energy investments. The solar energy production at this location shows moderate seasonal variation. Autumn emerges as the most productive season with 6.05kWh per day for each kilowatt of installed capacity. Summer follows with 5.56kWh/day, while spring yields a similar 5.54kWh/day. Winter represents the least productive period, though still respectable at 5.01kWh/day per kilowatt installed. For maximizing year-round solar energy production in Ciudad Guayana, Bolívar, fixed solar panels should be installed at an 8-degree tilt facing South. This specific angle has been calculated to optimize annual energy capture based on the location's position relative to the sun's path throughout the year.

Environmental and Weather Considerations

Several factors may affect solar production efficiency in Ciudad Guayana:

• Heavy rainfall during the wet season (typically May to November) can temporarily reduce solar output due to cloud cover and direct precipitation on panels
• High humidity levels year-round may accelerate degradation of equipment if not properly protected
• Dust and airborne particles from nearby industrial activities, including mining and steel production, can accumulate on panels
• Occasional tropical storms may bring strong winds that could damage installations

Preventative Measures for Installation

To mitigate these challenges, several preventative measures are recommended. Solar installations should include robust mounting systems designed to withstand tropical storms and high winds. Regular cleaning schedules are essential to remove dust accumulation, particularly during the dry season when airborne particles are more prevalent. Investing in higher-grade protective coatings and enclosures for electrical components will help combat the effects of high humidity. Additionally, implementing a slight increase in the tilt angle (1-2 degrees beyond the optimal 8 degrees) can promote natural cleaning during rainfall events, helping to maintain efficiency even during the wet season. With proper installation considerations and maintenance protocols, Ciudad Guayana's consistent solar radiation throughout the year makes it a viable location for solar PV development despite these environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

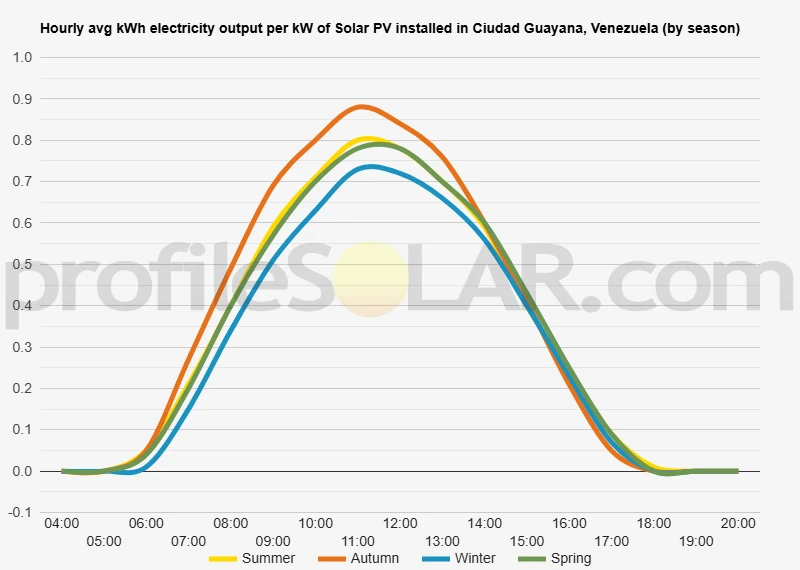

Solar output per kW of installed solar PV by season in Ciudad Guayana

Seasonal solar PV output for Latitude: 8.352, Longitude: -62.6491 (Ciudad Guayana, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° South in Ciudad Guayana, Venezuela

To maximize your solar PV system's energy output in Ciudad Guayana, Venezuela (Lat/Long 8.352, -62.6491) throughout the year, you should tilt your panels at an angle of 8° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ciudad Guayana, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ciudad Guayana, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	14° South in Autumn	24° South in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ciudad Guayana, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ciudad Guayana, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ciudad Guayana, Venezuela

Ciudad Guayana is situated in the northeastern part of Venezuela, at the confluence of the Orinoco and Caroní rivers. The topography of the region is characterized by a diverse landscape that includes river plains, rolling hills, and more distant mountainous areas. The city itself is built on relatively flat terrain near the riverbanks, with an elevation of approximately 30-50 meters above sea level. The immediate surroundings of Ciudad Guayana feature the expansive floodplains of the Orinoco River, one of South America's major waterways. These plains provide wide, open spaces with minimal shading from geographical features. To the north and northwest of the city, the terrain gradually rises into the Guiana Highlands, a vast plateau region that extends across parts of Venezuela, Guyana, Suriname, and Brazil.

Surrounding Topographical Features

To the south of Ciudad Guayana lies the extensive Orinoco River basin, characterized by flat to gently undulating terrain. This area experiences seasonal flooding but also contains elevated sections that remain dry year-round. The eastern regions feature more varied topography with scattered hills interspersed with valleys and smaller water bodies. The western side of the city transitions into slightly more elevated terrain, with rolling hills that gradually increase in height as one moves further west. The northern regions begin the transition to the ancient Guiana Shield, a geological formation that includes plateaus, mesas, and the dramatic tepuis (table-top mountains) further to the north.

Optimal Areas for Large-Scale Solar PV

The most suitable areas for large-scale solar photovoltaic installations around Ciudad Guayana would be the elevated sections of the Orinoco basin to the south and southeast of the city. These areas offer several advantages: First, they provide extensive flat or gently sloping terrain that would minimize earthwork costs during installation and maximize exposure to sunlight throughout the day. The elevated portions of these plains remain dry during seasonal flooding, ensuring year-round accessibility and operation. Second, the areas south of the city have relatively sparse vegetation compared to the more densely forested regions to the north, reducing clearing requirements and environmental impact. The natural savanna-like ecosystems in some of these southern regions would require less modification for solar farm development. The western outskirts of Ciudad Guayana also present viable options for solar development, particularly in the areas where the terrain begins to rise into rolling hills. These locations offer good drainage and minimal flood risk while still providing reasonably flat sections suitable for panel arrays. Areas to avoid would include the immediate floodplains of the Orinoco and Caroní rivers, which face regular inundation risks. Similarly, the more rugged and forested highlands to the north would present significant challenges in terms of clearing, access, and construction costs, making them less economically viable for large-scale installations. The elevated plains approximately 15-30 kilometers south of the city center represent perhaps the optimal balance of favorable topography, accessibility, and reduced environmental impact for substantial solar energy development in the region.
