El Callao, Bolívar, Venezuela represents a highly favorable location for year-round solar photovoltaic energy generation. Situated in the tropics at coordinates 7.3574°N, -61.83°W, this location benefits from consistent sunlight throughout the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature and daylight changes seen in temperate regions.

Solar Energy Production Potential

The solar energy output data for El Callao demonstrates excellent year-round performance. Autumn emerges as the peak season for solar generation, producing 6.05 kWh per day per kW of installed solar capacity. Summer follows closely with 5.80 kWh/day per kW, while spring generates 5.47 kWh/day per kW. Even during the lowest-producing season of winter, the location still delivers a respectable 5.04 kWh/day per kW of installed capacity. This consistent performance throughout the year makes El Callao particularly attractive for solar installations, as there are no extended periods of dramatically reduced energy production that might require significant backup power systems or energy storage solutions.

Optimal Panel Configuration

For fixed solar panel installations at El Callao, Bolívar, the ideal tilt angle to maximize total year-round production is 7 degrees facing south. This relatively shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year. This optimal angle is calculated by analyzing daily solar elevation angles, determining daily optimal panel tilt, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant environmental factors could potentially impact solar energy production at El Callao, Bolívar, requiring careful consideration during installation and ongoing maintenance: The tropical climate brings intense seasonal rainfall during wet periods, which can create multiple challenges. Heavy precipitation may reduce solar irradiance reaching the panels, while accumulated debris, leaves, and organic matter on panel surfaces can significantly decrease efficiency. The high humidity levels characteristic of tropical regions can also accelerate corrosion of metal components and electrical connections if not properly protected. Dust accumulation presents another concern, particularly during drier periods when fine particles can settle on panel surfaces and create a film that blocks sunlight. In tropical locations, this dust often combines with moisture to form stubborn residues that are more difficult to remove than dry dust alone. The intense tropical sun, while beneficial for energy generation, can also create challenges through accelerated degradation of panel materials and mounting systems. UV radiation levels are consistently high throughout the year, potentially affecting the longevity of plastic components and panel encapsulants.

Preventative Measures for Optimal Performance

To address these challenges and ensure maximum energy production, several preventative measures should be implemented:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for natural cleaning by wind and rain
• Use corrosion-resistant materials for all mounting hardware and electrical components, with marine-grade stainless steel or aluminum being preferred options
• Implement a regular cleaning schedule, particularly important during and after the dry season when dust accumulation is highest
• Design drainage systems to quickly remove standing water and prevent moisture-related issues
• Select high-quality panels with robust UV-resistant encapsulants and backing materials rated for tropical conditions

Regular maintenance becomes particularly crucial in this tropical environment. Monthly visual inspections can help identify issues before they significantly impact performance, while quarterly professional cleaning and annual comprehensive system checks will help ensure optimal long-term operation. Despite these environmental considerations, El Callao's consistent high solar output throughout the year makes it an excellent location for solar energy generation. With proper installation techniques and regular maintenance addressing the tropical climate challenges, solar installations at this location can achieve excellent performance and provide reliable renewable energy year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

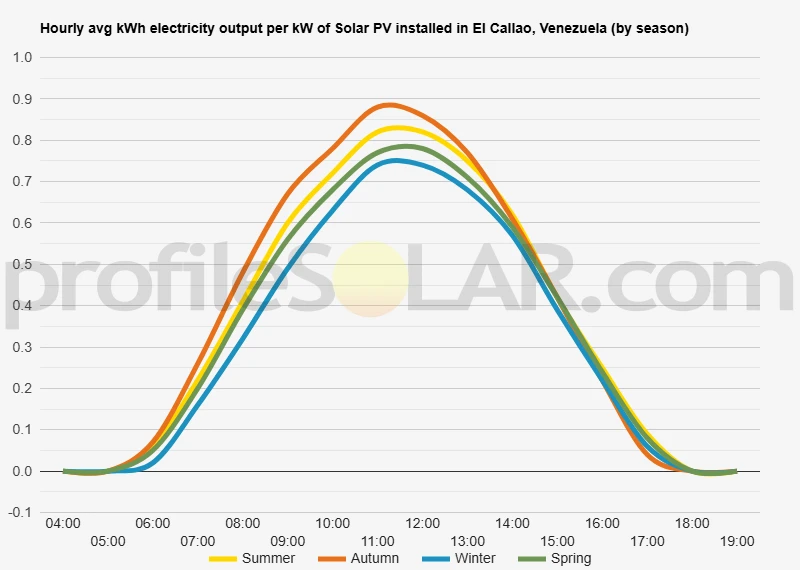

Solar output per kW of installed solar PV by season in El Callao

Seasonal solar PV output for Latitude: 7.3574, Longitude: -61.83 (El Callao, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° South in El Callao, Venezuela

To maximize your solar PV system's energy output in El Callao, Venezuela (Lat/Long 7.3574, -61.83) throughout the year, you should tilt your panels at an angle of 7° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Callao, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Callao, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	13° South in Autumn	23° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Callao, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Callao, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Callao, Venezuela

Topographical Features of El Callao Region

El Callao sits within the Guayana Highlands of southeastern Venezuela, characterized by ancient geological formations that create a distinctive landscape of rolling hills, plateaus, and river valleys. The terrain around this historic gold mining town features moderate elevation changes, with the land gradually rising from approximately 200 meters above sea level in the river valleys to around 500 meters on the surrounding ridges and plateaus. The region displays a mix of weathered granite outcrops, lateritic soils, and sedimentary formations that have been shaped by millions of years of erosion. These geological processes have created a landscape of gentle to moderate slopes interspersed with flatter areas, particularly along the drainage systems that flow northward toward the Orinoco River basin. Dense tropical forest covers much of the natural landscape, though human activities including mining, agriculture, and settlement have created clearings and modified areas throughout the region. The Yuruari River and its tributaries wind through the area, creating fertile alluvial plains and terraces that contrast with the more elevated interfluves.

Climate and Environmental Conditions

The El Callao area experiences a tropical climate with distinct wet and dry seasons. The dry season typically extends from December through April, while the wet season brings substantial rainfall from May through November. This seasonal pattern significantly influences vegetation growth, soil conditions, and accessibility across the region. Temperatures remain relatively stable throughout the year due to the equatorial location, though the moderate elevation provides some cooling effect compared to lower-lying areas. The combination of consistent temperatures and seasonal rainfall creates conditions that support lush vegetation during wet periods while allowing for clearer skies during drier months.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around El Callao would be the elevated plateaus and ridge systems that extend to the south and east of the town. These areas offer several advantages including relatively flat to gently sloping terrain that minimizes grading requirements and reduces installation costs. The plateau areas typically feature more stable soils and better drainage compared to the valley bottoms, reducing concerns about seasonal flooding or waterlogging that could affect solar infrastructure. These elevated positions also tend to experience better air circulation, which helps maintain optimal operating temperatures for photovoltaic panels. Areas that have been previously cleared for agriculture or mining activities present particularly attractive opportunities, as they already lack the dense forest cover that would require extensive clearing. These modified landscapes often feature compacted soils suitable for supporting solar mounting systems while avoiding the environmental impacts associated with deforestation. The interfluves between major drainage systems offer extensive flat to gently undulating terrain that could accommodate large solar arrays with minimal terrain modification. These areas typically sit at elevations between 300 and 450 meters above sea level, providing good exposure while remaining accessible for construction and maintenance activities. Transportation access represents another crucial factor, with areas near existing road networks or those where access roads could be easily constructed being most practical for development. The relatively gentle topography in many areas around El Callao facilitates road construction and maintenance access to potential solar sites.
