El Pilar, Nueva Esparta, Venezuela, situated at 10.9869° N, 63.8314° W, presents a favorable location for solar energy generation throughout the year. This tropical setting offers consistent sunlight, with seasons primarily characterized by wet and dry periods rather than significant temperature variations.

Solar Energy Potential

The solar energy output at El Pilar demonstrates remarkable consistency across all seasons. Summer yields 5.73 kWh per day for each kilowatt of installed solar capacity, while autumn sees a slight increase to 6.11 kWh/day. Winter experiences a minor dip to 5.53 kWh/day, and spring bounces back to 6.05 kWh/day. These figures indicate that El Pilar maintains a high solar energy potential year-round, with autumn and spring being particularly productive seasons. The minimal variation between seasons suggests that solar installations in this location can provide reliable energy output throughout the year.

Optimal Panel Tilt

For fixed solar panel installations in El Pilar, Nueva Esparta, the ideal tilt angle to maximize year-round energy production is 11 degrees facing South. This angle has been calculated taking into account the location's latitude, daily solar elevation angles, and NASA's solar irradiance data, ensuring optimal exposure to sunlight throughout the year.

Environmental Considerations

While El Pilar's location is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity: The tropical climate can lead to increased humidity, potentially affecting solar panel efficiency. 2. Heavy rainfall: During the wet season, frequent rain may temporarily reduce solar output. To mitigate these factors, the following preventative measures can be taken:

• Use corrosion-resistant materials for mounting systems and electrical components
• Install panels at the optimal tilt angle to facilitate natural cleaning by rainwater
• Implement a regular cleaning and maintenance schedule to prevent dust and debris accumulation
• Consider using anti-reflective coatings on panels to improve performance in high-humidity conditions

By implementing these measures, solar installations in El Pilar can maintain high efficiency and longevity, taking full advantage of the location's excellent solar potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

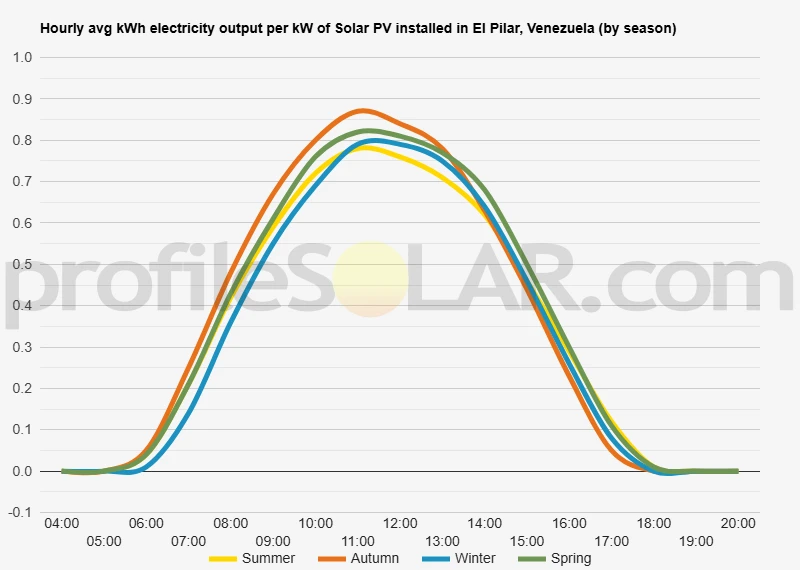

Solar output per kW of installed solar PV by season in El Pilar

Seasonal solar PV output for Latitude: 10.9869, Longitude: -63.8314 (El Pilar, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° South in El Pilar, Venezuela

To maximize your solar PV system's energy output in El Pilar, Venezuela (Lat/Long 10.9869, -63.8314) throughout the year, you should tilt your panels at an angle of 11° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Pilar, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Pilar, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	17° South in Autumn	26° South in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Pilar, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Pilar, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Pilar, Venezuela

The topography around El Pilar, Venezuela, is characterized by a diverse landscape that transitions from coastal plains to mountainous terrain. Located in the northeastern part of the country, this region features a mix of flat lowlands near the Caribbean coast and gradually rising elevations as one moves inland. Near the coast, the terrain is predominantly flat to gently rolling, with some areas of wetlands and mangrove forests. As you move away from the shoreline, the landscape becomes more undulating, with small hills and valleys dotting the countryside. This area is part of the larger Eastern Venezuelan Basin, which is known for its relatively low-lying topography. Further inland, the terrain becomes more rugged as it approaches the foothills of the Eastern Range of the Andes Mountains. Here, the elevation increases more dramatically, with steep slopes and deep valleys characterizing the landscape. The mountains in this region, while not as tall as the main Andean range, still reach significant heights and create a striking contrast to the coastal plains.

Suitable Areas for Large-scale Solar PV

When considering areas near El Pilar for large-scale solar photovoltaic (PV) installations, the most suitable locations would likely be found in the flat to gently rolling terrain of the coastal plains and nearby inland areas. These regions offer several advantages for solar energy development: Firstly, the relatively flat topography makes construction and maintenance of solar arrays easier and more cost-effective. There's less need for extensive land preparation, and the uniform terrain allows for optimal positioning of solar panels. Secondly, these areas typically receive ample sunlight throughout the year due to their proximity to the equator and lack of significant geographical obstructions. The consistent solar radiation in this region makes it ideal for maximizing energy production from PV installations. Additionally, the coastal plains and nearby inland areas often have fewer competing land uses compared to more densely populated or agriculturally intensive regions. This could potentially make it easier to secure large tracts of land necessary for utility-scale solar projects. However, it's important to note that site-specific assessments would be necessary to determine the exact suitability of any location. Factors such as local climate conditions, proximity to existing power infrastructure, and environmental considerations would all need to be carefully evaluated before proceeding with large-scale solar development in the region.
