El Tigre, Anzoátegui, Venezuela represents a very favorable location for year-round solar PV energy generation. This tropical location consistently delivers strong solar output throughout all seasons, with daily electricity production ranging from 5.36 kWh per installed kilowatt in winter to a peak of 6.20 kWh per kilowatt during autumn months.

Seasonal Solar Performance

The location shows excellent consistency in solar energy production across all seasons. Autumn emerges as the most productive period at 6.20 kWh/day per kW, followed closely by spring at 5.82 kWh/day per kW. Summer delivers 5.65 kWh/day per kW, while winter, though the lowest producing season, still maintains strong output at 5.36 kWh/day per kW. This relatively small variation between seasons makes El Tigre highly suitable for reliable year-round solar energy generation. For optimal energy capture, solar panels should be installed at a fixed tilt angle of 8 degrees facing south. This angle maximizes total annual production by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Challenges

Several factors in El Tigre's tropical environment could potentially impact solar panel performance and require careful consideration during installation: Humidity and Moisture: The tropical climate brings high humidity levels year-round, which can lead to corrosion of electrical components and connections. Moisture infiltration into junction boxes and wiring systems poses ongoing risks to system performance and safety. Heavy Rainfall: During wet seasons, intense tropical downpours can create challenges for panel drainage and may cause temporary shading from storm clouds. Poor drainage around solar installations can lead to water pooling and potential electrical hazards. Dust and Debris Accumulation: Dry season conditions can result in significant dust buildup on panel surfaces, reducing light transmission and overall efficiency. Organic debris from tropical vegetation may also accumulate on panels.

Preventative Installation Measures

To maximize energy production despite these environmental challenges, several protective measures should be implemented:

• Install high-quality weatherproof enclosures and junction boxes rated for tropical marine environments
• Use corrosion-resistant mounting hardware made from aluminum or stainless steel
• Ensure proper panel drainage by maintaining the recommended 8-degree tilt angle
• Apply protective coatings to all electrical connections and use sealed conduits for wiring
• Design mounting systems to withstand high winds and heavy rain loads

Maintenance Considerations: Regular cleaning schedules become essential in this environment. Monthly panel washing during dry seasons and quarterly deep cleaning can maintain optimal performance. Professional inspection of seals and electrical connections should occur annually to prevent moisture-related degradation. Despite these environmental challenges, El Tigre's consistently high solar output throughout the year makes it an excellent location for solar PV installations when proper protective measures are implemented during installation and ongoing maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

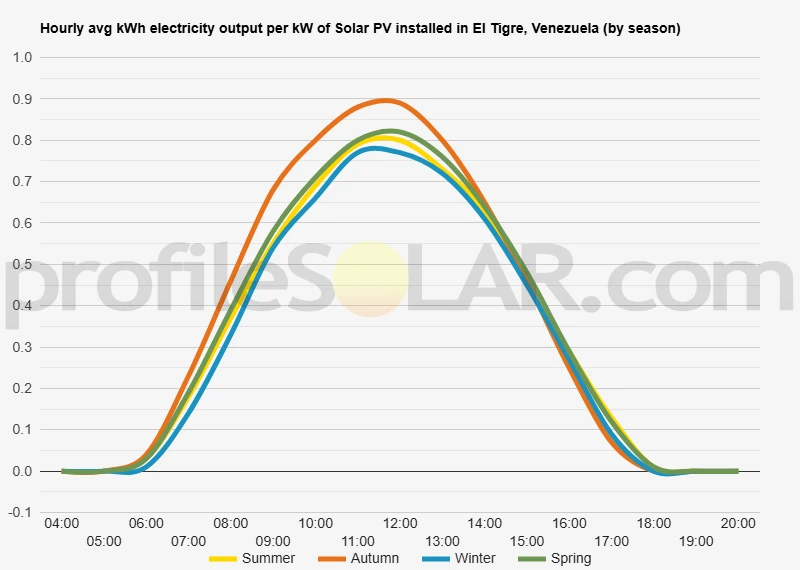

Solar output per kW of installed solar PV by season in El Tigre

Seasonal solar PV output for Latitude: 8.8871, Longitude: -64.248 (El Tigre, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° South in El Tigre, Venezuela

To maximize your solar PV system's energy output in El Tigre, Venezuela (Lat/Long 8.8871, -64.248) throughout the year, you should tilt your panels at an angle of 8° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Tigre, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Tigre, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	14° South in Autumn	24° South in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Tigre, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Tigre, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Tigre, Venezuela

Topographical Features of El Tigre Region

El Tigre sits within the expansive Llanos region of Venezuela, characterized by vast plains that stretch across much of the country's central territory. This area represents one of South America's most extensive flatland systems, with gentle undulations and minimal elevation changes across the landscape. The terrain around El Tigre consists primarily of sedimentary deposits that have created a relatively uniform topographical profile with elevations typically ranging between 100 to 200 meters above sea level.

The region's topography has been shaped by centuries of river systems, particularly tributaries of the Orinoco River basin. These waterways have carved subtle valleys and created natural drainage patterns throughout the plains. The landscape features scattered gallery forests along riverbanks, while the majority of the terrain consists of grasslands and savanna vegetation. Small hills and ridges occasionally break the otherwise flat horizon, but these elevated areas are generally modest in height and scope.

The soil composition varies from sandy loams to clay deposits, reflecting the area's geological history as an ancient floodplain. Seasonal flooding patterns have influenced the local topography, creating slight depressions and elevated areas that become more pronounced during wet periods. The overall gradient of the land slopes very gradually toward the northeast, following the general drainage pattern toward the Orinoco River system.

Optimal Areas for Large-Scale Solar Development

The extensive flat plains surrounding El Tigre present exceptional opportunities for large-scale solar photovoltaic installations. The most suitable areas lie to the south and southwest of the city, where the terrain remains consistently level across vast distances. These zones offer the advantage of minimal grading requirements and straightforward installation logistics for solar arrays.

Areas with slightly elevated terrain, typically found on the gentle ridges scattered throughout the region, provide additional benefits for solar development. These locations offer improved drainage characteristics and reduced risk of seasonal flooding while maintaining the flat profile necessary for efficient panel installation. The elevated positions also facilitate better air circulation around solar equipment, which can improve system performance.

The grassland areas with minimal tree cover represent the most immediately suitable locations for solar development. These zones require minimal land clearing and present fewer environmental obstacles compared to areas with established forest cover. The open savanna regions extending westward from El Tigre offer particularly promising conditions, with consistent topography and existing access routes that could support construction and maintenance activities.

Areas near existing infrastructure corridors, including roads and transmission lines, provide additional advantages for solar development. The relatively uniform topography throughout the region means that proximity to electrical grid connections often becomes a more important factor than minor variations in terrain characteristics. The flat nature of the landscape allows for flexible siting of solar installations to optimize both solar exposure and grid connectivity.
