Guatire, Miranda, Venezuela represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 10.4659°N, -66.546°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than traditional temperature variations.

Solar Energy Production Potential

The solar energy output data for Guatire demonstrates remarkably consistent performance across all seasons. Spring offers the highest production at 6.16 kWh per day per kW of installed solar capacity, followed closely by autumn at 6.12 kWh/day. Summer produces 6.05 kWh/day, while winter shows the lowest output at 5.58 kWh/day per kW installed. This seasonal variation is relatively modest, with only a 10% difference between the best and worst performing seasons. Such consistency makes Guatire an ideal location for solar installations, as energy production remains reliable throughout the year without dramatic seasonal fluctuations that might affect energy planning or return on investment. For optimal year-round solar energy capture at this location, fixed solar panels should be tilted at 10 degrees toward the south. This angle maximizes total annual production by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Challenges

Several environmental factors in Guatire could potentially impact solar energy production, though most can be effectively managed with proper planning and maintenance. Tropical Weather Patterns The most significant challenge comes from Venezuela's tropical climate, which brings distinct wet and dry seasons. During the rainy season, increased cloud cover and frequent precipitation can temporarily reduce solar output. Heavy rainfall, while beneficial for cleaning panels naturally, can also create periods of reduced sunlight penetration. Dust and Atmospheric Particles The dry season presents its own challenges, particularly dust accumulation on solar panels. In tropical regions like Guatire, Miranda, airborne particles from various sources can build up on panel surfaces, creating a film that reduces light transmission and decreases energy production efficiency. High Humidity and Heat Consistently high humidity levels and elevated temperatures are typical in this tropical location. While solar panels actually perform slightly better in cooler conditions, excessive heat can reduce their efficiency. High humidity can also contribute to faster degradation of certain system components if not properly protected.

Preventative Measures for Optimal Performance

Several strategies can help maximize solar energy production in Guatire's tropical environment:

• Install automated cleaning systems or schedule regular manual cleaning to remove dust, debris, and organic matter that accumulates on panel surfaces
• Use high-quality mounting systems with adequate ventilation space beneath panels to promote air circulation and heat dissipation
• Select solar panels and inverters specifically rated for high-temperature, high-humidity tropical conditions
• Implement proper drainage systems around installations to prevent water pooling during heavy rains
• Apply protective coatings to electrical components and connections to guard against moisture-related corrosion

Maintenance Considerations Regular maintenance becomes particularly important in tropical climates. Establishing a routine inspection schedule helps identify potential issues before they significantly impact production. This includes checking for vegetation growth that might create shading, ensuring drainage systems remain clear, and monitoring system performance to detect efficiency drops that might indicate cleaning needs. Despite these environmental considerations, Guatire's consistent solar resource and relatively minor seasonal variation make it a highly favorable location for solar energy generation. With proper installation techniques and regular maintenance, solar installations in this location can achieve excellent long-term performance and energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

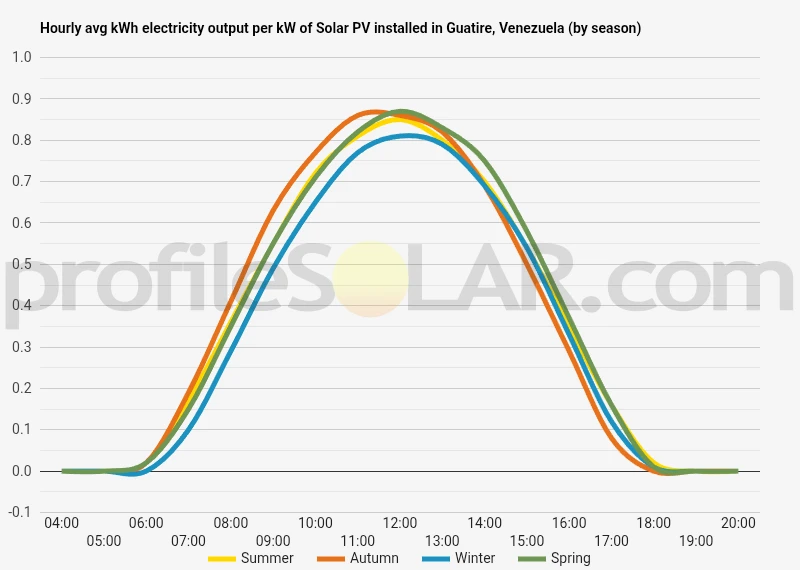

Solar output per kW of installed solar PV by season in Guatire

Seasonal solar PV output for Latitude: 10.4659, Longitude: -66.546 (Guatire, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Guatire, Venezuela

To maximize your solar PV system's energy output in Guatire, Venezuela (Lat/Long 10.4659, -66.546) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guatire, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guatire, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guatire, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guatire, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guatire, Venezuela

Topographical Features of Guatire

Guatire sits in the Miranda state of north-central Venezuela, positioned within the Caracas metropolitan area approximately 30 kilometers east of the capital city. The town occupies a strategic location in the Tuy River valley, nestled between the coastal mountain range known as the Cordillera de la Costa to the north and the rolling hills of the Venezuelan interior to the south.

The immediate topography around Guatire is characterized by relatively gentle terrain with moderate elevation changes. The town itself rests at an elevation of roughly 400 meters above sea level, sitting on fertile valley floors that have historically supported agricultural activities. The landscape features a mix of flat to gently rolling terrain interspersed with low hills and ridges that create a varied but generally accessible topographical profile.

To the north of Guatire, the land gradually rises toward the coastal mountain range, where elevations increase significantly and the terrain becomes more rugged and steep. These northern slopes are covered with dense tropical vegetation and present challenging conditions for large-scale development projects. Conversely, the southern areas extend into broader valley systems with more moderate topographical relief.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Guatire would be the relatively flat valley floors and gentle slopes that extend primarily to the south and southeast of the town. These areas offer several key advantages including minimal grading requirements, reduced construction costs, and easier access for maintenance operations.

The southeastern plains toward the communities of Caucagua and beyond present particularly promising conditions. This region features expansive areas of relatively level terrain with good accessibility via existing road networks. The topography here consists mainly of gentle undulations that would require minimal site preparation while still providing adequate drainage for solar installations.

Areas to the southwest, extending toward the broader Tuy River valley system, also offer excellent potential for large-scale solar development. The terrain in this direction is characterized by wide, flat expanses with only modest elevation changes that would not significantly impact solar panel placement or tracking systems.

The western areas toward Caracas, while topographically suitable in many locations, face greater competition from urban development and existing infrastructure. However, some parcels in this direction still offer viable options, particularly those that remain undeveloped despite their proximity to major population centers.

Northern locations should generally be avoided for large-scale solar projects due to the increasingly steep terrain as the land rises toward the coastal mountains. These areas present significant engineering challenges, higher development costs, and potential shading issues from the varied topographical relief.
