Miranda, Venezuela, located in the tropics at coordinates 10.2462, -66.4165, offers a promising environment for solar energy generation throughout the year. The consistent sunlight and minimal seasonal variations make it an attractive location for solar PV installations.

Seasonal Solar Performance

The solar energy output in Miranda remains relatively stable across all seasons, with only minor fluctuations. Spring yields the highest output at 6.14 kWh/day per kW installed, closely followed by autumn at 6.11 kWh/day. Summer produces 6.04 kWh/day, while winter sees a slight dip to 5.56 kWh/day. This consistent performance is characteristic of tropical regions, where the sun's path varies less throughout the year compared to locations at higher latitudes.

Optimal Panel Tilt

For fixed solar panel installations in Miranda, the ideal tilt angle to maximize year-round energy production is 9 degrees facing South. This relatively shallow angle reflects the location's proximity to the equator, where the sun's position remains high in the sky throughout the year.

Environmental Considerations

While Miranda's climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Rainfall: The region experiences a wet season, which could temporarily reduce solar output due to cloud cover. However, the rain can also help keep panels clean, potentially improving efficiency. 2. Humidity: High humidity levels may lead to condensation on panels, potentially affecting performance. Regular cleaning and maintenance can mitigate this issue. 3. Tropical storms: Although less frequent than in some other tropical areas, occasional storms could pose a risk to solar installations. Robust mounting systems and weather-resistant panels are recommended to withstand strong winds and heavy rainfall.

Preventative Measures

To ensure optimal solar energy production in Miranda, consider the following measures: 1. Use corrosion-resistant materials for all components to withstand the humid tropical environment. 2. Install a reliable drainage system to prevent water accumulation on or around the panels. 3. Implement a regular cleaning schedule to remove any dust or debris that may accumulate during dry periods. 4. Consider using microinverters or power optimizers to minimize the impact of partial shading on overall system performance. By taking these precautions and leveraging the consistent sunlight available in Miranda, solar PV installations can provide a reliable and efficient source of renewable energy throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

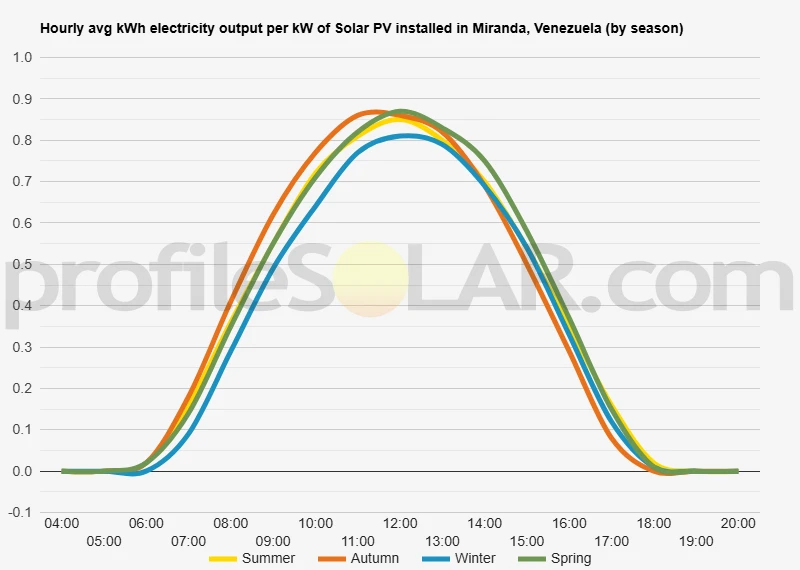

Solar output per kW of installed solar PV by season in Miranda

Seasonal solar PV output for Latitude: 10.2462, Longitude: -66.4165 (Miranda, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° South in Miranda, Venezuela

To maximize your solar PV system's energy output in Miranda, Venezuela (Lat/Long 10.2462, -66.4165) throughout the year, you should tilt your panels at an angle of 9° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Miranda, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Miranda, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Miranda, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Miranda, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Miranda, Venezuela

The topography around Miranda, Venezuela, is characterized by a diverse landscape that includes both mountainous regions and coastal plains. The area is part of the northern coastal region of Venezuela, where the Andes mountain range meets the Caribbean Sea. This creates a striking contrast between steep, forested slopes and flatter, more open areas closer to the coast. To the south and west of Miranda, the terrain becomes increasingly hilly and mountainous as it transitions into the Cordillera de la Costa mountain range. These mountains, while not as tall as the main Andes, still reach heights of over 2,000 meters in some areas. The slopes are often covered in lush vegetation, with dense forests and steep valleys creating a rugged, picturesque landscape. As one moves northward and eastward from Miranda, the terrain gradually becomes less mountainous and more level. This area transitions into the coastal plains, which are characterized by gentler slopes and more open spaces. The coastal region features a mix of grasslands, agricultural areas, and urban developments.

Potential Areas for Large-Scale Solar PV

When considering areas suitable for large-scale solar photovoltaic (PV) installations near Miranda, the coastal plains to the north and east present the most promising opportunities. These areas offer several advantages for solar energy production: Firstly, the flatter terrain of the coastal plains provides more open space and easier access for construction and maintenance of solar arrays. The lack of significant geographical obstacles makes it simpler to design and implement large-scale installations. Secondly, these coastal areas generally receive more consistent sunlight throughout the year compared to the mountainous regions. The absence of tall mountains means fewer shadows and obstructions that could reduce solar energy capture. Additionally, the proximity to urban centers in this region could be beneficial for energy distribution and infrastructure connections. The existing road networks and power grids in the more developed coastal areas could facilitate the integration of new solar energy projects. However, it's important to note that any large-scale solar PV project would require detailed environmental and geological surveys to ensure minimal impact on local ecosystems and to account for factors such as soil stability and drainage. The specific locations chosen would need to balance optimal solar exposure with environmental considerations and local land use regulations.
