San Diego, Carabobo, Venezuela presents an excellent location for year-round solar energy generation, with consistently high energy output throughout all seasons due to its tropical location at coordinates 10.2648, -67.9517.

Solar Energy Production Performance

The solar energy output at this Venezuelan location remains remarkably stable across all meteorological seasons. Spring offers the highest production at 6.19 kWh per day per kW of installed solar capacity, followed closely by autumn at 6.10 kWh per day. Summer produces 6.06 kWh per day, while winter shows the lowest but still excellent output at 5.91 kWh per day per kW installed. This consistency makes San Diego, Carabobo, Venezuela an ideal location for solar installations, as the variation between the best and worst performing seasons is minimal - only about 5% difference between spring and winter production levels.

Optimal Installation Configuration

For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 10 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several significant factors could impact solar energy production at this tropical Venezuelan location:

• Heavy rainfall during wet seasons - Can reduce solar irradiance and create debris accumulation on panels
• High humidity levels - May cause corrosion of electrical components and reduce panel efficiency
• Dust and particulate matter - Common in tropical climates, can significantly reduce panel output
• Tropical storms and high winds - Potential for structural damage to installations
• Salt air exposure - If near coastal areas, can accelerate corrosion of metal components

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several protective measures should be implemented during installation:

• Enhanced drainage systems - Install proper water runoff channels to prevent standing water
• Corrosion-resistant materials - Use marine-grade aluminum frames and stainless steel hardware
• Regular cleaning schedules - Implement frequent panel washing to remove dust and debris
• Robust mounting systems - Design installations to withstand high wind loads typical of tropical storms
• Protective coatings - Apply anti-corrosive treatments to all metal components
• Adequate ventilation - Ensure proper airflow behind panels to reduce heat buildup and humidity effects

Despite these environmental challenges, the consistently high solar output throughout the year makes San Diego, Carabobo, Venezuela an excellent choice for solar energy projects, provided proper installation techniques and maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

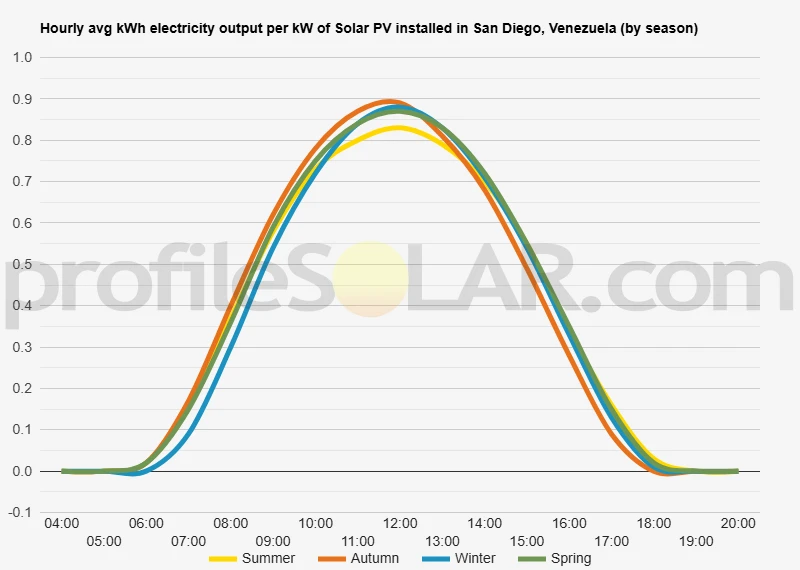

Solar output per kW of installed solar PV by season in San Diego

Seasonal solar PV output for Latitude: 10.2648, Longitude: -67.9517 (San Diego, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in San Diego, Venezuela

To maximize your solar PV system's energy output in San Diego, Venezuela (Lat/Long 10.2648, -67.9517) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Diego, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Diego, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Diego, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Diego, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Diego, Venezuela

Topographical Features of San Diego, Venezuela

San Diego, Venezuela sits within the Carabobo state in the north-central region of the country, positioned in the expansive Lake Valencia basin. The immediate topography around this location is characterized by relatively flat to gently rolling terrain, with elevations typically ranging from 400 to 500 meters above sea level. This area forms part of the broader Valencia basin, which represents one of Venezuela's most significant inland valleys. The landscape surrounding San Diego is dominated by agricultural plains and urban development, with the terrain gradually rising toward the surrounding mountain ranges. To the north, the coastal mountain range provides a dramatic backdrop, while the foothills create a transitional zone between the flat basin floor and the steeper mountainous terrain. These foothills feature moderate slopes and undulating hills that extend outward from the main mountain mass.

Regional Geography and Land Character

The Valencia basin, where San Diego is located, represents an ideal geographical setting for large-scale development projects. The basin floor consists primarily of alluvial deposits that have created extensive flat areas over geological time. These plains are interspersed with gentle rises and shallow depressions, but overall maintain a relatively consistent elevation profile across vast expanses. Moving outward from the immediate San Diego area, the topography transitions through several distinct zones. The central basin maintains its flat character for many kilometers in multiple directions, particularly toward the east and south. This consistent terrain continues until reaching the basin's natural boundaries formed by surrounding highland areas.

Optimal Areas for Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found across the extensive flat plains that characterize the Valencia basin floor. These areas offer several topographical advantages, including minimal elevation changes that reduce construction complexity and infrastructure costs. The consistent grade across these plains eliminates the need for extensive site preparation or terracing that would be required in more mountainous terrain. Particularly favorable zones extend eastward and southward from San Diego, where the basin floor maintains its flat character across considerable distances. These areas provide optimal conditions for solar array placement, with natural drainage patterns that prevent water accumulation while avoiding the steeper slopes of the surrounding foothills. The northern approaches toward the coastal mountains would be less suitable due to increasing slope gradients and more complex terrain features. However, some of the gentler foothill areas might offer secondary opportunities for solar development, particularly on south-facing slopes that receive favorable solar exposure throughout the day. Agricultural areas within the basin also present potential opportunities, as the flat terrain that makes these lands suitable for farming also creates ideal conditions for renewable energy installations. The existing infrastructure networks serving these agricultural zones could potentially support solar development projects with minimal additional investment in access roads and transmission connections.
