San Juan de los Morros, Venezuela presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 9.9151°N, -67.3588°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than traditional temperature variations.

Solar Energy Production Performance

The solar energy output at San Juan de los Morros demonstrates remarkably consistent performance across all seasons. Spring emerges as the most productive period, generating 6.16 kWh per day per kW of installed solar capacity. Autumn follows closely with 5.99 kWh/day per kW, while winter produces 5.89 kWh/day per kW, and summer yields 5.86 kWh/day per kW. This seasonal variation of only 0.30 kWh between the highest and lowest producing seasons indicates exceptional stability for solar energy generation. The slight peak in spring production makes this an particularly favorable time for maximum solar output, though the consistently high performance throughout the year means reliable energy generation regardless of season. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 10 degrees facing south. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in San Juan de los Morros, though the location's strong solar output suggests these challenges are manageable with proper planning. The tropical climate brings distinct wet and dry seasons, with the wet season potentially creating challenges through increased cloud cover and heavy rainfall. During rainy periods, cloud cover can temporarily reduce solar irradiance, though the consistently high seasonal averages indicate this impact is not severe enough to significantly compromise overall performance. Dust accumulation presents another consideration, particularly during dry periods when atmospheric particles can settle on solar panels and reduce their efficiency. The combination of dry dusty conditions followed by heavy rains creates a cycle that requires attention for optimal performance. High humidity levels, common in tropical locations, can potentially affect electrical components over time if not properly protected. Additionally, the intense tropical sun, while beneficial for energy generation, can create thermal stress on solar equipment.

Preventative Measures for Optimal Performance

Several installation and maintenance strategies can help maximize solar energy production at this location:

• Install panels with adequate ventilation spacing to prevent overheating and allow air circulation
• Use high-quality, humidity-resistant electrical components and weatherproof connections
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Choose solar panels and mounting systems specifically rated for tropical climates and high humidity
• Install proper drainage systems to prevent water accumulation around ground-mounted installations

Regular maintenance becomes particularly important in this environment. Monthly cleaning during dry periods and post-storm inspections during wet seasons can help maintain peak performance. The natural cleaning effect of heavy tropical rains can be beneficial, but should be supplemented with manual cleaning when needed. Despite these environmental considerations, San Juan de los Morros represents an highly favorable location for solar energy generation, with its consistent high output throughout the year far outweighing the manageable challenges posed by local weather patterns.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

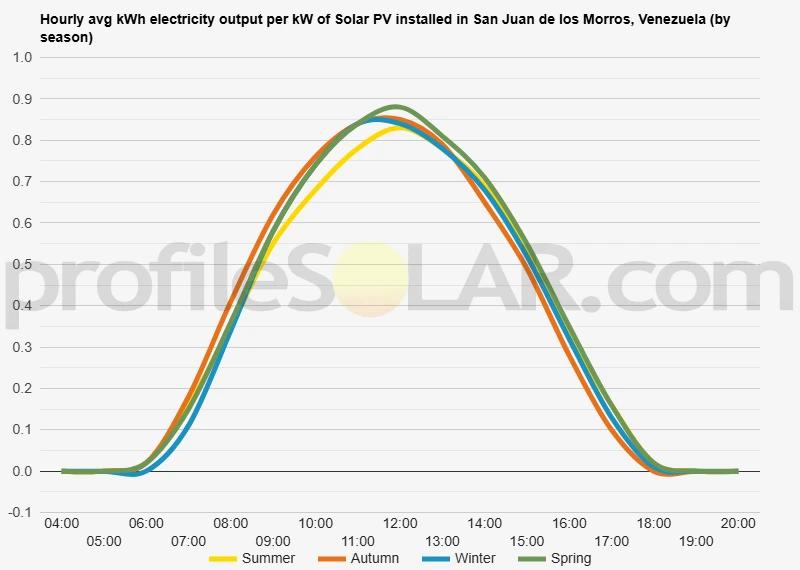

Solar output per kW of installed solar PV by season in San Juan De Los Morros

Seasonal solar PV output for Latitude: 9.9151, Longitude: -67.3588 (San Juan De Los Morros, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in San Juan De Los Morros, Venezuela

To maximize your solar PV system's energy output in San Juan De Los Morros, Venezuela (Lat/Long 9.9151, -67.3588) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Juan De Los Morros, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Juan De Los Morros, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Juan De Los Morros, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Juan De Los Morros, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Juan De Los Morros, Venezuela

Topographical Features of San Juan de los Morros

San Juan de los Morros sits in the central region of Venezuela within the state of Guárico, positioned in a transitional zone between the northern coastal mountains and the vast Llanos plains that stretch across much of central Venezuela. The city itself is nestled among distinctive rock formations and rolling hills that give the area its characteristic landscape. These prominent rock outcroppings, known locally as "morros," are ancient geological formations that rise dramatically from the surrounding terrain, creating a landscape of scattered hills and valleys. The elevation around San Juan de los Morros varies considerably, with the city center located at approximately 400 meters above sea level. The terrain features a mix of gentle slopes, flat areas, and steeper inclines where the rock formations create more dramatic topographical changes. The surrounding landscape transitions from these hilly areas to flatter plains as one moves further south toward the heart of the Llanos region.

Drainage and Water Features

The region's drainage patterns are influenced by both the local topography and the broader watershed systems that flow toward the Orinoco River basin. Several seasonal streams and small rivers wind through the area, creating valleys and depressions in the landscape. During the wet season, these waterways become more prominent, while in the dry season, many reduce to intermittent flows or dry beds. The presence of these water features creates variations in the local terrain, with some areas featuring gentle valley floors while others rise to form watersheds and ridgelines. This varied topography results in microclimates and different soil conditions across relatively short distances.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the San Juan de los Morros area would be the flatter expanses found between the prominent rock formations and extending southward toward the Llanos plains. These areas offer several advantages for solar development, including relatively level terrain that minimizes construction costs and reduces shading issues between solar panel arrays. The gently rolling plains that surround the more dramatic rock formations provide extensive areas of suitable land with gradual slopes that can accommodate large solar installations without requiring significant grading or earthwork. These flatter regions also tend to have fewer obstacles such as large trees or steep terrain that could interfere with solar panel placement and maintenance access. Areas located on the southern and eastern approaches to the city, where the landscape begins its transition to the broader Llanos region, present particularly favorable conditions. These locations combine relatively flat topography with good accessibility via existing road networks, making them practical for both construction and ongoing maintenance operations. The elevated plateaus and mesa-like formations in the region also offer potential sites, particularly those with flat or gently sloping tops that provide natural elevation above surrounding areas. These elevated positions can offer advantages in terms of air circulation and reduced risk of flooding during wet seasons, though they may require more complex access arrangements. When selecting specific sites, areas with southern or southwestern exposures on gentle slopes would be preferable, as these orientations optimize solar collection throughout the day. The relatively open landscape in much of the region means that issues with shading from nearby terrain features can be minimized through careful site selection, particularly in the flatter areas that extend away from the prominent rock formations that characterize the immediate vicinity of the city.
