Tinaco, Cojedes, Venezuela presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 9.7033°N, -68.4251°W, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature and daylight changes seen in temperate regions.

Solar Energy Production Potential

The solar energy output data for Tinaco demonstrates remarkably consistent performance across all seasons. During summer months, solar panels can be expected to generate 5.46 kWh per day for each kW of installed capacity. The performance actually improves during the cooler months, with autumn producing 5.99 kWh/day per kW, winter reaching 6.01 kWh/day per kW, and spring maintaining 5.98 kWh/day per kW. This seasonal pattern shows that winter, spring, and autumn are the optimal times for solar generation at this location, with all three seasons producing nearly identical and superior output compared to summer. The difference between the best performing season (winter) and the lowest (summer) is only about 10%, indicating exceptional year-round reliability. For maximum energy production from a fixed panel installation at Tinaco, Cojedes, solar panels should be tilted at 10 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel positioning for each day, and then weighting these angles based on solar irradiance data to find the best year-round average.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Tinaco and require consideration during installation planning. The tropical climate brings intense rainfall during wet seasons, which can reduce solar output temporarily but also provides natural panel cleaning. However, the high humidity and frequent precipitation create ideal conditions for accelerated dirt, dust, and organic matter accumulation on panel surfaces between cleaning rains. Regular maintenance schedules should account for more frequent cleaning during dry periods. Venezuela's location exposes solar installations to potential tropical weather systems, including strong winds and intense storms. These can damage improperly secured installations and create debris that blocks panels.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective:

• Install robust mounting systems designed for high wind loads and tropical storm conditions
• Use anti-reflective and hydrophobic coatings on panels to minimize dirt adhesion and improve water runoff
• Design installations with adequate spacing between panel rows to prevent shading and allow air circulation for cooling
• Implement proper drainage systems to prevent water pooling around ground-mounted installations
• Select panels and electrical components rated for high humidity and temperature fluctuations

The consistently high solar output throughout the year, combined with proper installation techniques to address local environmental factors, makes Tinaco an highly favorable location for solar PV energy generation. The minimal seasonal variation ensures reliable energy production regardless of the time of year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

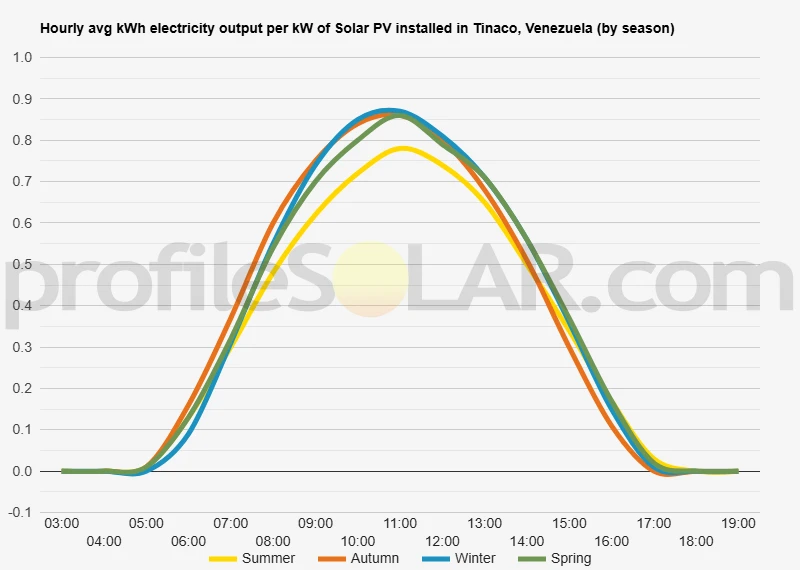

Solar output per kW of installed solar PV by season in Tinaco

Seasonal solar PV output for Latitude: 9.7033, Longitude: -68.4251 (Tinaco, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Tinaco, Venezuela

To maximize your solar PV system's energy output in Tinaco, Venezuela (Lat/Long 9.7033, -68.4251) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tinaco, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tinaco, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	15° South in Autumn	25° South in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tinaco, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tinaco, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tinaco, Venezuela

Topographical Features Around Tinaco

Tinaco sits in the central plains region of Venezuela, known locally as the Llanos, which forms part of the expansive Orinoco River basin. This area is characterized by relatively flat terrain with gentle undulations across vast stretches of grassland and savanna. The elevation around Tinaco remains fairly consistent at approximately 200 to 300 meters above sea level, creating an expansive plateau that extends for considerable distances in all directions.

The landscape consists primarily of rolling plains with occasional low hills and subtle ridges that rarely exceed 50 meters in height difference from the surrounding terrain. These gentle elevations provide natural drainage patterns without creating significant obstacles for large-scale development projects. The terrain slopes very gradually toward the northeast, following the general drainage pattern toward the Orinoco River system.

Water features in the region include several seasonal streams and small rivers that flow intermittently depending on rainfall patterns. The Portuguese River passes to the south of Tinaco, while various tributaries create a network of waterways that generally flow from southwest to northeast. During the dry season, many of these water courses become reduced to narrow channels, leaving extensive flat areas exposed.

Soil Composition and Ground Conditions

The soil composition around Tinaco consists predominantly of alluvial deposits typical of the Venezuelan Llanos. These soils are generally well-drained during dry periods but can become saturated during the wet season. The ground conditions feature a mixture of clay and sandy soils with good bearing capacity when properly managed. The relatively stable geological foundation provides suitable conditions for construction projects, though seasonal variations in moisture content require consideration for permanent installations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateau areas to the west and southwest of Tinaco. These zones offer several advantages including consistent elevation, minimal slope variation, and good drainage characteristics that reduce the risk of seasonal flooding. The terrain in these areas remains above the typical flood levels of nearby waterways while maintaining easy access to existing infrastructure.

Areas located on the gentle ridges running roughly north-south provide excellent positioning for solar arrays. These elevated sections offer natural drainage while remaining close enough to Tinaco's existing electrical infrastructure to minimize transmission costs. The consistent topography across these ridges allows for standardized installation techniques across large areas, reducing construction complexity and costs.

The eastern plains extending toward the Portuguese River also present favorable conditions, particularly the higher ground that remains well above seasonal flood levels. These areas benefit from minimal vegetation and relatively uniform soil conditions. The flat nature of this terrain simplifies the installation of tracking systems and allows for optimal spacing between solar panel arrays.

Locations to avoid would include the immediate floodplains of seasonal waterways and any low-lying areas that show evidence of regular inundation. The lowest elevations near stream confluences and natural drainage channels would be unsuitable due to periodic flooding and potentially unstable soil conditions during wet periods.
