Tinaquillo, Cojedes, Venezuela presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 9.9182°N, -68.3003°W, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the temperature variations seen in temperate climates.

Solar Energy Production Potential

The solar energy output data for Tinaquillo demonstrates remarkably consistent performance across all seasons. The location can generate substantial electricity throughout the year, with production levels varying only modestly between seasons:

• Summer: 5.46 kWh per day per kW of installed solar capacity
• Autumn: 5.99 kWh per day per kW of installed solar capacity
• Winter: 6.01 kWh per day per kW of installed solar capacity
• Spring: 5.98 kWh per day per kW of installed solar capacity

The winter months actually show the highest production levels, followed closely by spring and autumn. This consistent performance makes Tinaquillo an ideal location for solar installations, as energy output remains reliable regardless of the time of year.

Optimal Panel Configuration

For maximum year-round solar production at this location, solar panels should be installed at a fixed tilt angle of 10 degrees facing south. This relatively shallow angle is calculated to optimize total annual energy output by accounting for the sun's path throughout the year, daily solar elevation angles, and weighting these factors against actual solar irradiance data.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Tinaquillo and require careful consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar output due to cloud cover and atmospheric moisture. Heavy rains can also lead to dust and debris accumulation on panels once the weather clears. Installing panels with adequate drainage systems and easy access for cleaning helps maintain optimal performance. High humidity levels throughout much of the year can cause condensation issues and may accelerate corrosion of electrical components. Using marine-grade or tropical-rated equipment with proper sealing and ventilation helps combat these moisture-related problems. Dust accumulation during dry periods can significantly reduce panel efficiency. The combination of agricultural activity in surrounding areas and periodic dry spells can create dusty conditions that coat solar panels. Regular cleaning schedules and consideration of self-cleaning panel technologies can help maintain peak performance.

Preventative Installation Measures

To maximize energy production despite these challenges, several preventative measures should be implemented during solar installation. Selecting equipment specifically rated for tropical climates ensures better longevity and performance under high humidity and temperature conditions. Proper panel mounting systems should allow for adequate air circulation underneath panels to reduce heat buildup and moisture retention. Installing panels with sufficient spacing between rows prevents shading while allowing maintenance access. Implementing automated cleaning systems or establishing regular manual cleaning protocols helps maintain panel efficiency. During wet seasons, more frequent inspections ensure that drainage systems function properly and prevent water damage to electrical components. Using high-quality inverters and electrical components with appropriate IP ratings for outdoor tropical conditions, along with proper grounding and surge protection, helps protect the system from weather-related electrical issues common in tropical climates.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 83 locations across Venezuela. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Venezuela by location

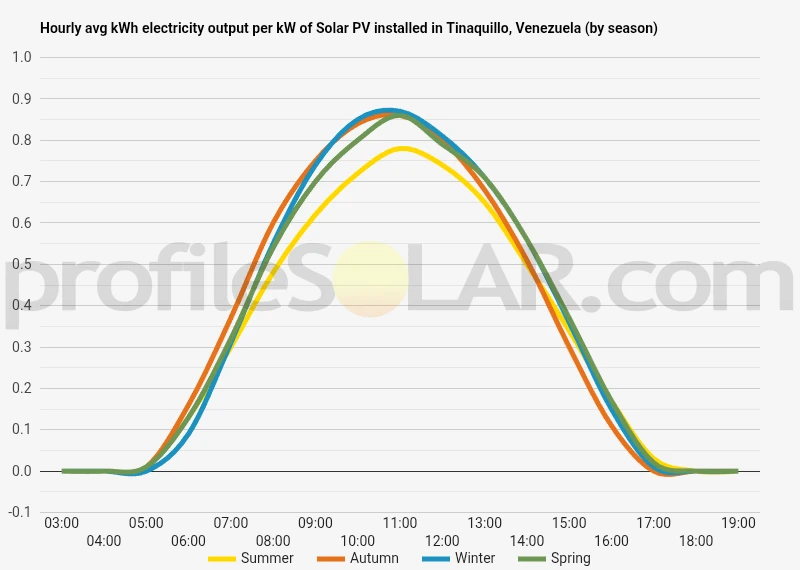

Solar output per kW of installed solar PV by season in Tinaquillo

Seasonal solar PV output for Latitude: 9.9182, Longitude: -68.3003 (Tinaquillo, Venezuela), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Tinaquillo, Venezuela

To maximize your solar PV system's energy output in Tinaquillo, Venezuela (Lat/Long 9.9182, -68.3003) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tinaquillo, Venezuela

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tinaquillo, Venezuela. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tinaquillo, Venezuela

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tinaquillo, Venezuela.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tinaquillo, Venezuela

Topographical Features of Tinaquillo

Tinaquillo sits in the central region of Venezuela within Cojedes state, positioned in a transitional zone between the northern coastal mountains and the expansive Llanos plains to the south. The immediate area around the town features relatively gentle, rolling terrain with elevations ranging from approximately 200 to 400 meters above sea level. This moderate elevation provides the region with a subtropical climate while maintaining accessibility for infrastructure development. The landscape is characterized by undulating hills interspersed with valleys that drain toward the larger river systems of the central Venezuelan plains. The terrain gradually flattens as it extends southward toward the Llanos, creating natural corridors that have historically supported transportation and agricultural activities. To the north, the land begins its gradual rise toward the foothills of the Cordillera de la Costa, though these mountains remain at a considerable distance from Tinaquillo itself.

Drainage and Water Features

The region's hydrology is dominated by seasonal watercourses and small tributaries that flow generally southward toward the major rivers of the Llanos system. During the wet season, these waterways can become more prominent, but they typically maintain modest flows throughout the year. The drainage patterns have carved gentle valleys through the landscape, creating a series of ridges and depressions that define the local topography. Several small creeks and seasonal streams wind through the area, though none represent major obstacles to development. The water table in this region tends to be relatively accessible, supporting both agricultural activities and potential industrial development.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the elevated plateaus and ridge tops that surround Tinaquillo. These areas offer several advantages including reduced flood risk, excellent exposure to prevailing wind patterns for natural panel cooling, and minimal interference from vegetation or structures. The elevated terrain also provides natural drainage, reducing concerns about water accumulation during heavy rainfall periods. Particularly suitable areas extend along the higher ground to the northeast and northwest of the town, where the landscape opens into broader, relatively flat expanses. These zones combine the benefits of elevation with sufficient flat or gently sloping terrain to accommodate large arrays without excessive grading requirements. The soil composition in these areas tends to be well-drained, reducing foundation complications for mounting systems. The southern approaches toward the Llanos also present excellent opportunities, especially where the terrain transitions from the rolling hills to the flatter plains. These locations offer vast expanses of available land with minimal topographical constraints, though careful consideration of seasonal flooding patterns would be essential for site selection.

Infrastructure and Access Considerations

The existing road network around Tinaquillo provides reasonable access to many of the most topographically suitable areas for solar development. The town serves as a regional hub with connections to major transportation corridors, facilitating both construction logistics and ongoing maintenance operations. The relatively modest elevation changes throughout the region mean that extending access roads to optimal sites would not require extensive engineering or construction through challenging terrain. The proximity to existing electrical infrastructure, including transmission lines that serve the regional grid, makes many of the elevated sites around Tinaquillo particularly attractive for large-scale solar development. The combination of suitable topography, reasonable accessibility, and existing infrastructure creates favorable conditions for significant renewable energy projects in this central Venezuelan location.
