Bac Kan, Bắc Kạn Province, Vietnam presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that reflect the region's tropical climate patterns.

Seasonal Solar Performance

The solar energy output at Bac Kan varies considerably throughout the year. Summer provides the highest energy production at 5.69 kWh per day for each kilowatt of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 4.05 kWh per day per kilowatt installed. Autumn shows a notable decline in solar production, generating 3.90 kWh per day per kilowatt. Winter presents the most challenging conditions for solar energy generation, producing only 2.74 kWh per day per kilowatt installed - less than half of the summer output.

Optimal Installation Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 18 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Challenges

Several significant local factors can impede solar production in Bac Kan:

• Monsoon seasons and heavy rainfall: The tropical climate brings intense wet seasons that can dramatically reduce solar irradiance through cloud cover and frequent storms
• High humidity levels: Persistent moisture in the air can reduce solar panel efficiency and create maintenance challenges
• Dust and debris accumulation: The combination of dry periods followed by heavy rains can lead to significant dust buildup on panels
• Tropical storms and typhoons: The region's exposure to severe weather events poses risks to solar installations

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Robust mounting systems: Use reinforced mounting structures designed to withstand high winds and storm conditions typical of tropical regions
• Enhanced drainage: Install panels with adequate spacing and drainage systems to prevent water accumulation and allow for proper air circulation
• Anti-soiling coatings: Apply specialized coatings to panel surfaces that help shed dust and debris more effectively
• Regular maintenance scheduling: Establish frequent cleaning and inspection routines, particularly before and after monsoon seasons
• Corrosion-resistant materials: Use marine-grade or specially treated components to withstand the high humidity and moisture exposure

The significant drop in winter production suggests that backup energy sources or battery storage systems may be particularly valuable for maintaining consistent power supply during the less productive months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 160 locations across Vietnam. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Vietnam by location

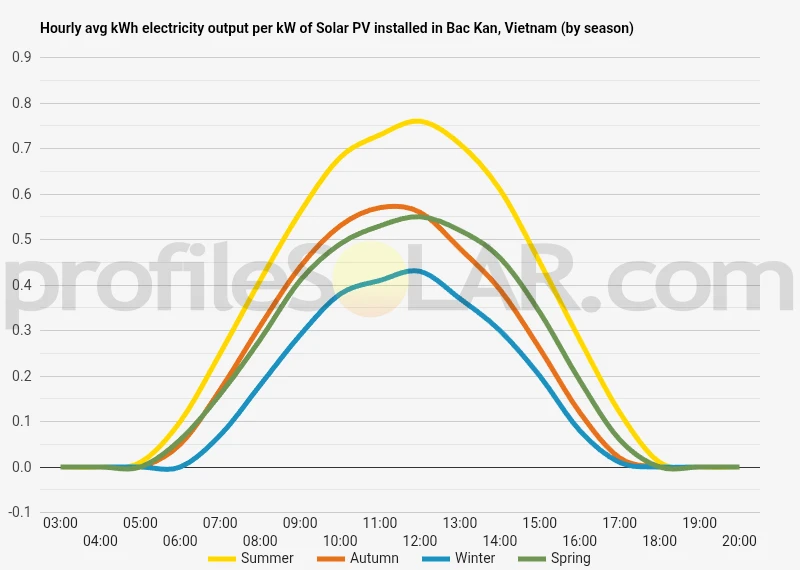

Solar output per kW of installed solar PV by season in Bac Kan

Seasonal solar PV output for Latitude: 22.1467, Longitude: 105.84 (Bac Kan, Vietnam), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° South in Bac Kan, Vietnam

To maximize your solar PV system's energy output in Bac Kan, Vietnam (Lat/Long 22.1467, 105.84) throughout the year, you should tilt your panels at an angle of 18° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bac Kan, Vietnam

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bac Kan, Vietnam. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° South in Summer	26° South in Autumn	38° South in Winter	14° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bac Kan, Vietnam

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bac Kan, Vietnam.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bac Kan, Vietnam

Topographical Features of Bac Kan Region

Bac Kan province sits in the mountainous northern region of Vietnam, characterized by a dramatic landscape of steep hills, deep valleys, and rugged terrain. The area forms part of the broader northern highlands that extend toward the Chinese border, creating a complex topographical environment dominated by limestone karst formations and densely forested mountains. Elevations throughout the region vary significantly, with many peaks rising above 1,000 meters, while river valleys carve through the landscape at much lower elevations.

The terrain around Bac Kan city itself occupies a relatively moderate elevation compared to the surrounding peaks, positioned in a valley system that provides some flatter ground amid the otherwise mountainous landscape. The Cau River and its tributaries have carved out these valley floors over millennia, creating the most accessible and developable land in the region. However, even these valley areas often feature rolling hills and irregular terrain that can present challenges for large-scale development projects.

Dense tropical forests cover much of the mountainous terrain, with primary and secondary growth extending across steep slopes that would be difficult to access or develop. The region experiences significant seasonal variation in weather patterns, with the mountainous topography creating microclimates and varying conditions across different elevations and aspects.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations would be found in the broader valley systems where the Cau River and its major tributaries have created relatively flat alluvial plains. These areas offer the best combination of accessible terrain, existing infrastructure connections, and sufficient contiguous land area to support utility-scale solar farms.

The valley floor areas south and east of Bac Kan city present particular advantages, as they benefit from existing road networks and proximity to electrical transmission infrastructure while maintaining relatively gentle topography. These locations would require minimal grading and earthwork compared to the steep hillsides that dominate much of the region.

Some of the lower elevation hills with southern-facing slopes could also prove suitable for solar development, particularly those that have been previously cleared for agriculture or other human activities. These elevated positions might actually offer advantages in terms of solar exposure, provided the slopes are not too steep to make installation and maintenance impractical.

Areas closer to the Chinese border tend to become increasingly mountainous and remote, making them less practical for large-scale solar projects despite potentially favorable solar conditions. The combination of difficult access, extreme terrain, and distance from electrical infrastructure would likely make such locations economically unfeasible for major solar installations.

Agricultural areas within the valley systems could potentially be developed for solar use, though this would need to balance energy production goals with local food security and land use priorities. The flat to gently rolling agricultural land represents some of the most technically suitable terrain in the region for solar panel installation and maintenance access.

Vietnam solar PV Stats as a country

Vietnam ranks 9th in the world for cumulative solar PV capacity, with 16,660 total MW's of solar PV installed. Each year Vietnam is generating 171 Watts from solar PV per capita (Vietnam ranks 30th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Vietnam?

Yes, there are several incentives for businesses wanting to install solar energy in Vietnam. The government has implemented a number of policies and programs to encourage the development of renewable energy sources, including solar energy. These include tax exemptions, preferential loans, and feed-in tariffs for electricity generated from solar power plants. Additionally, the government has established a Renewable Energy Development Fund to provide financial support for projects related to renewable energy sources such as solar power.

Do you have more up to date information than this on incentives towards solar PV projects in Vietnam? Please reach out to us and help us keep this information current. Thanks!
