Cam Ranh's Solar Energy Potential

Cam Ranh, Khánh Hòa Province, Vietnam, located at latitude 11.9149° and longitude 109.1657°, offers promising conditions for solar power generation throughout the year. This coastal location in southern Vietnam benefits from its position in the tropics, where sunlight remains relatively consistent across seasons. The solar energy production potential shows notable seasonal variations. Spring yields the highest output at 6.75 kWh per day for each kilowatt of installed capacity. Summer follows closely with 6.48 kWh/day per kW. Winter production remains respectable at 5.13 kWh/day per kW, while autumn sees the lowest generation at 4.54 kWh/day per kW. For maximum year-round energy capture, fixed solar panels should be installed at a tilt angle of 10 degrees facing South. This specific angle has been calculated to optimize annual solar collection based on Cam Ranh's geographical position and seasonal sun paths.

Seasonal Considerations

The spring and summer months clearly represent peak production periods in Cam Ranh, Khánh Hòa Province, making these seasons ideal for generating surplus energy. The relatively small variation between seasons (with autumn still producing over 67% of spring's output) indicates that solar remains viable year-round, unlike locations at higher latitudes that experience dramatic seasonal fluctuations. Rather than traditional four-season patterns, Cam Ranh experiences a more tropical climate with distinct wet and dry seasons. The dry season generally aligns with winter and spring, which helps explain the strong production figures during these periods despite winter's typically lower sun angle.

Environmental Challenges

Several environmental factors could potentially impact solar production in Cam Ranh:

• Typhoons and tropical storms can affect the region, particularly during the wet season (roughly May to November). These weather events bring heavy cloud cover, reducing solar output temporarily, and can potentially damage installations if not properly secured.
• High humidity and salt exposure from the nearby coast can accelerate corrosion of solar equipment and mounting hardware.
• Dust accumulation during the dry season can gradually reduce panel efficiency if not addressed.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended: Use marine-grade stainless steel mounting hardware and corrosion-resistant components to withstand the coastal environment. Implement automatic or scheduled cleaning systems to remove salt deposits and dust accumulation. Install panels with robust typhoon-rated mounting systems that exceed local wind load requirements. Additional protective measures include applying anti-corrosive coatings to electrical connections, using higher-grade waterproof junction boxes, and implementing lightning protection systems. Regular maintenance inspections, particularly before and after the wet season, will help ensure optimal system performance. Despite these considerations, Cam Ranh's tropical location provides excellent solar potential with good year-round production capabilities, making it a promising site for solar PV installations when properly designed for local conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 160 locations across Vietnam. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Vietnam by location

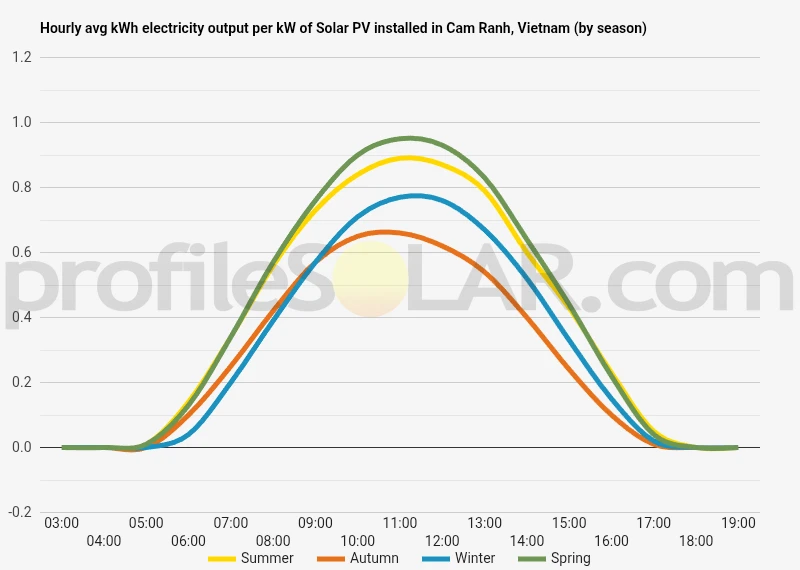

Solar output per kW of installed solar PV by season in Cam Ranh

Seasonal solar PV output for Latitude: 11.9149, Longitude: 109.1657 (Cam Ranh, Vietnam), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Cam Ranh, Vietnam

To maximize your solar PV system's energy output in Cam Ranh, Vietnam (Lat/Long 11.9149, 109.1657) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cam Ranh, Vietnam

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cam Ranh, Vietnam. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	16° South in Autumn	27° South in Winter	6° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cam Ranh, Vietnam

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cam Ranh, Vietnam.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cam Ranh, Vietnam

Cam Ranh is located in south-central Vietnam, characterized by a striking coastal topography that includes a deep natural harbor, mountainous terrain, and expansive plains. The area sits on a peninsula that extends into the South China Sea, creating a sheltered bay that has historically served as a significant naval base.

Coastal Features

The eastern side of Cam Ranh faces the South China Sea with beautiful beaches and sandy coastlines. The Cam Ranh Bay is a deep-water inlet that provides natural protection from the open ocean. This bay is one of Vietnam's most strategic natural harbors, with calm waters and significant depth that allows for maritime activities.

Mountainous Terrain

Moving inland from the coast, the topography quickly transitions to rolling hills and mountains. These highlands are part of the southern extensions of the Truong Son Mountain Range (also known as the Annamite Range), which runs along much of Vietnam's spine. Around Cam Ranh, these mountains are not extremely high but create a varied landscape with elevations generally ranging from 100 to 500 meters above sea level.

Plains and Valleys

Between the mountainous areas, there are several flat plains and valleys suitable for agriculture and development. These areas have historically been used for farming rice, fruits, and vegetables. The soil in these valleys tends to be fertile due to the weathering of the surrounding mountains.

Rivers and Watersheds

Several small rivers and streams flow through the region, emptying into Cam Ranh Bay. These waterways have created small deltas and alluvial plains near the coast. The watershed management in this area is important for both agricultural purposes and preventing flooding during monsoon seasons.

Climate Influence on Topography

The region experiences a tropical climate with distinct wet and dry seasons. This climate pattern has influenced the topography through erosion and weathering processes, creating a landscape of rounded hills and deep soil layers in many areas.

Suitable Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas around Cam Ranh show particular promise: The inland plains and plateaus to the west of Cam Ranh Bay offer extensive flat terrain that would minimize grading costs for solar installations. These areas receive substantial solar radiation throughout the year, particularly during the dry season. Some of the gently sloping hillsides facing south or southeast would also be suitable for solar development. These areas benefit from good solar exposure while avoiding the higher humidity of the immediate coastal zones. Former agricultural lands that have become less productive could be repurposed for solar farms, providing economic benefits while minimizing environmental impact. The area north of Cam Ranh, extending toward Nha Trang, includes several expanses of relatively flat land that would be well-suited for large solar arrays.

Topographical Challenges

Despite these promising areas, certain topographical features present challenges for solar development. The steeper mountainous regions would require significant and costly terrain modification. Additionally, areas prone to flooding or within active floodplains would not be ideal due to the risk of damage to solar infrastructure. The immediate coastal areas, while flat, may be more valuable for tourism development or face greater exposure to tropical storms and sea-level rise concerns, making them less optimal for long-term solar infrastructure investments.

Environmental Considerations

The topography around Cam Ranh supports diverse ecosystems, from coastal mangroves to mountain forests. Any large-scale solar development would need to consider these natural systems and their importance to local biodiversity and ecosystem services. Areas that have already been disturbed by human activity would generally be preferable for solar development from an environmental perspective.

Vietnam solar PV Stats as a country

Vietnam ranks 9th in the world for cumulative solar PV capacity, with 16,660 total MW's of solar PV installed. Each year Vietnam is generating 171 Watts from solar PV per capita (Vietnam ranks 30th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Vietnam?

Yes, there are several incentives for businesses wanting to install solar energy in Vietnam. The government has implemented a number of policies and programs to encourage the development of renewable energy sources, including solar energy. These include tax exemptions, preferential loans, and feed-in tariffs for electricity generated from solar power plants. Additionally, the government has established a Renewable Energy Development Fund to provide financial support for projects related to renewable energy sources such as solar power.

Do you have more up to date information than this on incentives towards solar PV projects in Vietnam? Please reach out to us and help us keep this information current. Thanks!
