Solar Energy Potential at Gio Linh, Quảng Trị Province, Vietnam

Gio Linh in Vietnam offers a generally favorable location for solar PV installations, with seasonal variations in energy production throughout the year. Located in the tropics, this site experiences more consistent sunlight patterns compared to locations at higher latitudes, though with clear seasonal differences in energy output. The solar production at Gio Linh shows significant seasonal fluctuations. Summer stands out as the most productive period with an impressive 6.08kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 5.96kWh/day per kW. These two seasons represent the prime generating periods at this location, delivering substantially more energy than the rest of the year. In contrast, autumn and winter show markedly reduced production levels. Autumn yields 3.73kWh/day per kW, while winter drops further to 3.26kWh/day per kW, representing the annual low point for solar generation. This winter output is nearly 50% lower than the summer peak, creating a substantial seasonal disparity. For optimal year-round energy harvest at this location, solar panels should be installed at a 13-degree tilt facing South. This specific angle has been calculated to maximize annual energy production based on the site's particular solar elevation patterns throughout the year.

Environmental and Weather Challenges

Several significant factors could impede solar production at Gio Linh:

• Typhoons and tropical storms regularly affect central Vietnam, particularly from August to November, posing risks of physical damage to solar installations and reducing generation during extended cloudy periods.
• The monsoon season brings heavy rainfall and persistent cloud cover, significantly reducing solar irradiance during affected months.
• High humidity levels (regularly exceeding 80%) can accelerate corrosion of system components and potentially reduce panel efficiency.
• Dust accumulation during dry seasons can gradually diminish panel performance if not addressed.

Recommended Preventative Measures

To maximize solar production despite these challenges, several preventative measures are advisable: Installing robust mounting systems specifically designed to withstand typhoon-force winds is essential for this region. These systems should meet or exceed local building codes for wind resistance, with additional reinforcement recommended for this typhoon-prone area. Anti-corrosion treatments and marine-grade components should be utilized due to the high humidity environment. Regular application of protective coatings to metal components and selecting components with appropriate IP (Ingress Protection) ratings will extend system lifespan. Implementing automated cleaning systems or scheduling regular manual cleaning, especially during dry seasons, will maintain optimal panel efficiency. Additionally, installing panels at the recommended 13-degree tilt helps facilitate natural cleaning during rainfall events. A robust lightning protection system is also critical in this tropical environment with frequent electrical storms. This should include proper grounding, surge protection devices, and lightning rods to safeguard the entire installation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 160 locations across Vietnam. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Vietnam by location

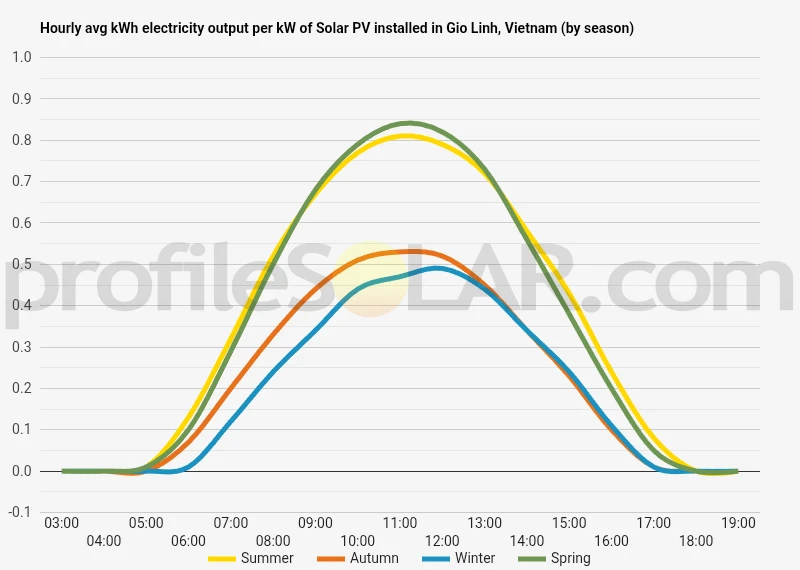

Solar output per kW of installed solar PV by season in Gio Linh

Seasonal solar PV output for Latitude: 16.9349, Longitude: 107.0865 (Gio Linh, Vietnam), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 13° South in Gio Linh, Vietnam

To maximize your solar PV system's energy output in Gio Linh, Vietnam (Lat/Long 16.9349, 107.0865) throughout the year, you should tilt your panels at an angle of 13° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gio Linh, Vietnam

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gio Linh, Vietnam. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	21° South in Autumn	30° South in Winter	10° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gio Linh, Vietnam

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gio Linh, Vietnam.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gio Linh, Vietnam

Gio Linh is situated in Quang Tri Province in central Vietnam, along the country's narrow waistline where Vietnam is at its most slender. The topography of this area presents a diverse landscape that transitions from coastal plains in the east to more elevated terrain as one moves westward.

Coastal to Highland Transition

The eastern portion of Gio Linh district lies within Vietnam's coastal lowlands, characterized by relatively flat terrain with gentle undulations. This area sits only a few meters above sea level and gradually rises as one moves inland. The district is positioned between the South China Sea to the east and the Annamite Mountain Range (Truong Son) to the west, creating a topographical gradient across the region. The western sections of Gio Linh begin to show more pronounced elevation changes as the land starts its ascent toward the mountains. These foothills feature rolling terrain with moderate slopes and small plateaus, eventually giving way to more rugged mountainous landscapes further west.

Hydrological Features

The area is crossed by several waterways, most notably the Ben Hai River, which historically served as the demarcation line between North and South Vietnam during the war period. This river and its tributaries have carved valleys through the landscape, creating natural divisions in the topography. The river plains provide areas of flat land amidst the increasingly hilly terrain to the west. Numerous smaller streams and drainage channels create a dendritic pattern across the landscape, particularly in the lower-lying eastern sections. These waterways have influenced local topography through erosion and deposition processes, creating small valleys and alluvial plains.

Vegetation and Land Cover

The natural vegetation transitions from coastal scrub and grasslands in the east to more dense forest cover in the elevated western regions. However, much of the original forest cover has been altered by human activities including agriculture, with rice paddies dominating the flatter areas and various crops cultivated on the gentler slopes.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas around Gio Linh would be the gently sloping or flat terrains in the eastern and central portions of the district. These areas offer several advantages: The eastern lowlands provide extensive flat or gently undulating terrain that would minimize grading and site preparation costs for solar installations. These areas typically have fewer obstacles to solar exposure, with minimal shadowing from mountains or tall vegetation. The slightly elevated plateaus and terraces in the central portion of the district might offer ideal conditions, as they typically have good drainage and are less prone to flooding than the lowest-lying areas near the coast. These middle-elevation zones often have reduced humidity compared to coastal areas, which can be beneficial for solar panel efficiency. Areas that have already been cleared for agriculture but may be less productive or are being transitioned away from traditional farming would present opportunities for solar development with minimal additional environmental disruption. It would be prudent to avoid the western mountainous areas where steeper slopes would complicate construction and maintenance of solar facilities, and where shadowing from surrounding peaks could reduce solar exposure. Similarly, areas directly adjacent to rivers should be approached cautiously due to potential flooding risks. The northeastern sections of Gio Linh district, where the terrain is relatively flat but slightly elevated above the flood-prone coastal plains, likely represent the optimal balance of favorable topography, accessibility, and reduced environmental risks for large-scale solar PV development.

Vietnam solar PV Stats as a country

Vietnam ranks 9th in the world for cumulative solar PV capacity, with 16,660 total MW's of solar PV installed. Each year Vietnam is generating 171 Watts from solar PV per capita (Vietnam ranks 30th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Vietnam?

Yes, there are several incentives for businesses wanting to install solar energy in Vietnam. The government has implemented a number of policies and programs to encourage the development of renewable energy sources, including solar energy. These include tax exemptions, preferential loans, and feed-in tariffs for electricity generated from solar power plants. Additionally, the government has established a Renewable Energy Development Fund to provide financial support for projects related to renewable energy sources such as solar power.

Do you have more up to date information than this on incentives towards solar PV projects in Vietnam? Please reach out to us and help us keep this information current. Thanks!
